pYD1 载体

基本信息

质粒类型: 酵母表面展示系统
高拷贝/低拷贝: 高拷贝
启动子: CMV
克隆方法: 多克隆位点，限制性内切酶
载体大小: 5009 bp (查看载体序列)
5' 测序引物及序列: pYD1-F: AGTAACGTTTGTCAGTAATTGC
3' 测序引物及序列: pYD1-R: GTCGATTTTGTTACATCTACAC
载体标签: C-His
载体抗性: Ampicillin (氨苄青霉素)
筛选标记: TRP1
备注: 配套酿酒酵母菌株是EBY100.

订购信息

产品编号 产品名称 规格 价格
VT1629 pYD1 2ug 点击询价

质粒图谱

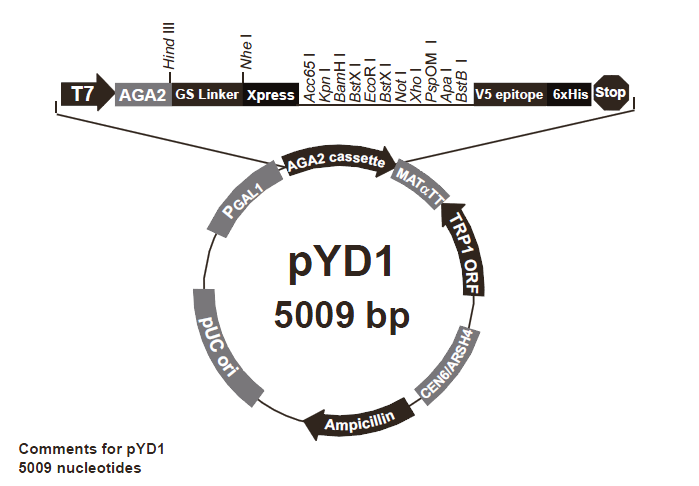

pYD1 质粒图谱

载体描述

pYD1 is a 5.0 kb expression vector designed for expression, secretion, and display of proteins on the extracellular surface of Saccharomyces cerevisiae cells. Features of this vector allow regulated expression, secretion, and detection of expressed proteins (see pages 15-16 for more information). The vector contains the following elements:

  • AGA2 gene from Saccharomyces cerevisiae. This gene encodes one of the subunits of the a-agglutinin receptor. Fusion of the gene of interest to AGA2 allows secretion and display of the protein of interest.
  • GAL1 promoter for regulated expression of the AGA2 gene fusion.
  • Xpress™ epitope and V5 epitope for detection of the displayed protein.
  • Polyhistidine (6xHis) tag for detection and possible purification on metal chelating resin.
  • TRP1 gene for selection in Saccharomyces cerevisiae.
  • CEN6/ARS4 for stable, episomal replication in yeast.
  • Ampicillin resistance gene and the pUC origin for selection and replication in E. coli.
