pET-23a(+) 载体

质粒类型: 大肠杆菌表达载体
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 3666bp (查看载体序列)
5' 测序引物: T7
5' 测序引物序列:   5'-TAATACGACTCACTATAGGG-3'
载体标签: N-T7, C-His
载体抗性: Ampicillin (氨苄青霉素)
备注:
Same as pET21abcd(+) but no lac; a,b,c,d vary by MCS.
产品编号 产品名称 规格 价格
VT1201 pET-23a(+) 2ug 点击询价

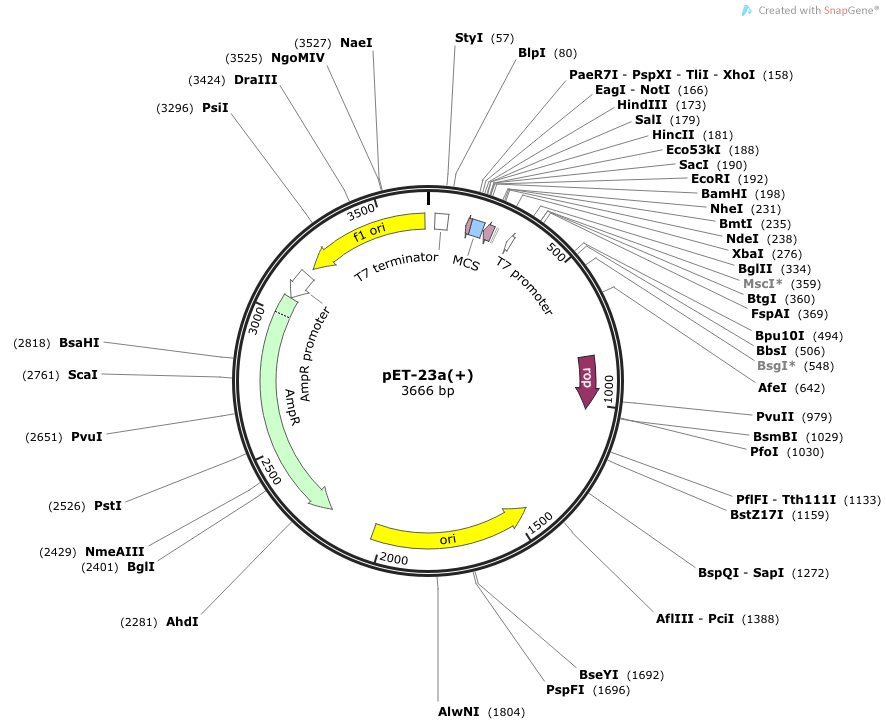

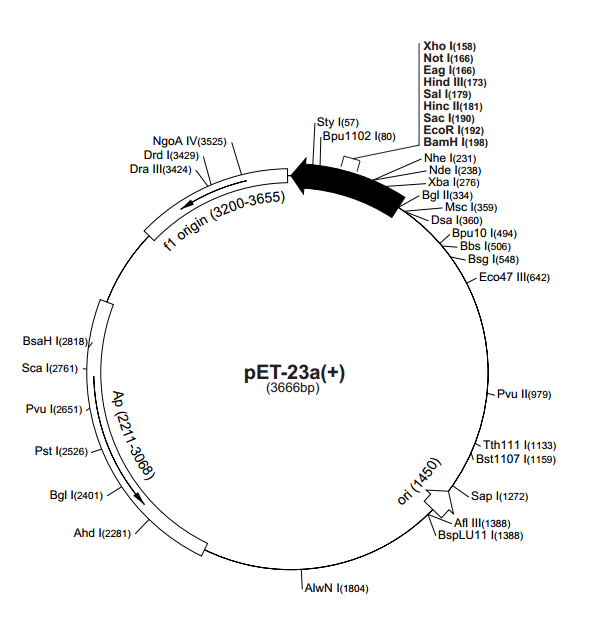

The pET-23a-d(+) vectors carry an N-terminal T7•Tag® sequence plus an optional C-terminal His•Tag® sequence. These vectors differ from pET-21a-d(+) by the “plain” T7 promoter instead of the T7lac promoter and by the absence of the lacI gene. Unique sites are shown on the circle map. Note that the sequence is numbered by the pBR322 convention, so the T7 expression region is reversed on the circular map. The cloning/expression region of the coding strand transcribed by T7 RNA polymerase is shown below. The f1 origin is oriented so that infection with helper phage will produce virions containing single-stranded DNA that corresponds to the coding strand. Therefore, single-stranded sequencing should be performed using the T7 terminator primer (Cat. No. 69337-3).
