别名: | pET41a, pET 41a |
---|---|
质粒类型: | 大肠杆菌表达载体 |
表达水平: | 高 |
克隆方法: | 多克隆位点,限制性内切酶 |
载体大小: | 5933 bp (查看载体序列) |
5' 测序引物: | T7或pGEX-5‘ |
5' 测序引物序列: | T7: 5'-TAATACGACTCACTATAGGG-3'; pGEX-5': 5'-GGGCTGGCAAGCCACGTTTGGTG-3' |
载体标签: | N-GST, N-His, N-Thrombin |
载体抗性: | Kanamycin (卡那霉素) |
备注: |
Encodes GST fusion tag; Nterm thrombin cleavage site; Nterm enterokinase cleavage site; PshAI blunt cloning site; a,b,c vary by MCS
|

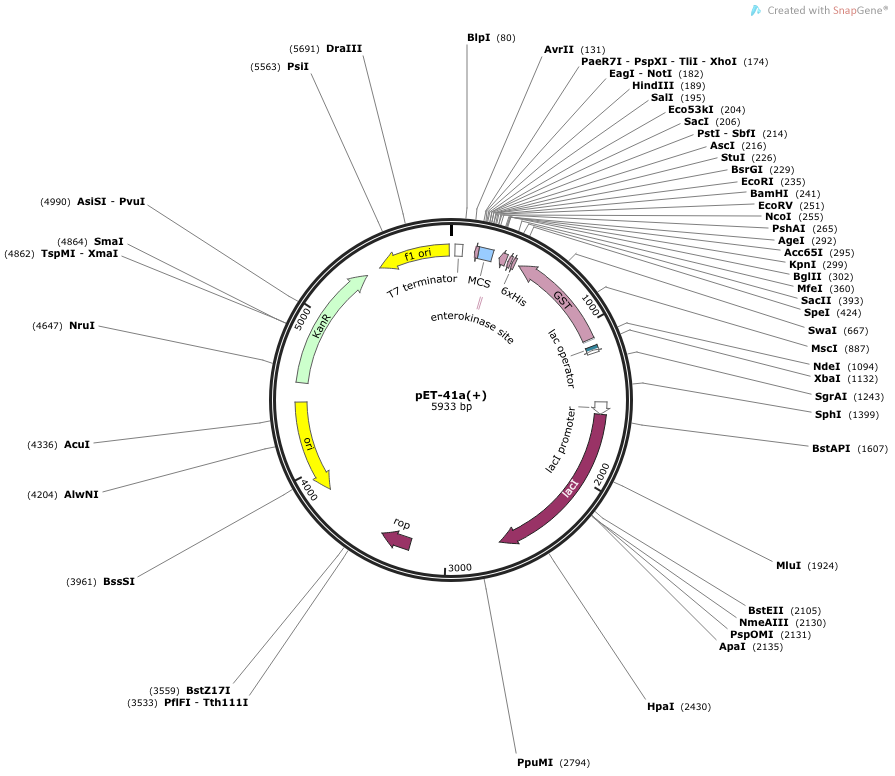

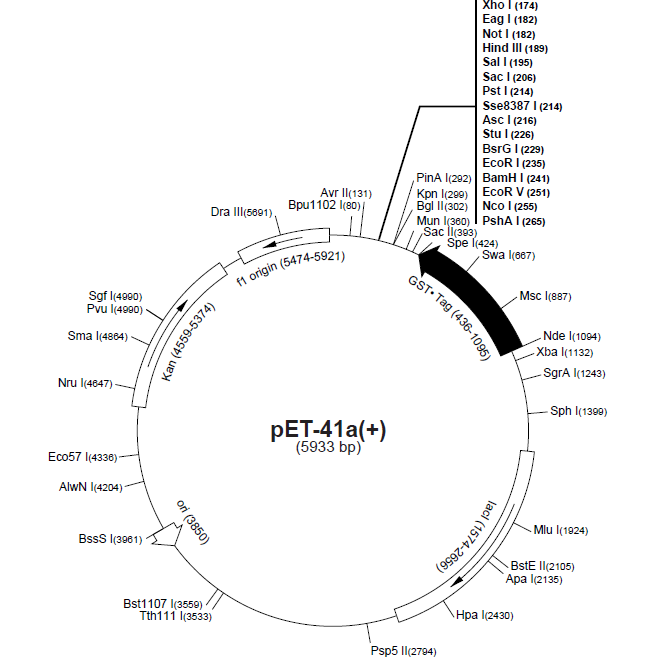

The pET-41 series is designed for cloning and high-level expression of peptide sequences fused with the 220 aa GST•Tag™ protein. Unique sites are shown on the circle map. Note that the sequence is numbered by the pBR322 convention, so the T7 expression region is reversed on the circle map. The cloning/expression region of the coding strand transcribed by T7 RNA polymerase is shown below. The f1 origin is oriented so that infection with helper phage will produce virions containing single stranded DNA that corresponds to the coding strand. Therefore, single stranded sequencing should be performed using the T7 terminator primer (cat. no. 69337-3).Vector encoded sequence can be completely removed when cloning into the PshAI site (as shown below) and then cleaving the GST fusion protein with Enterokinase.
